5100-AMC Press Automation Control
Advanced Modular Automation Control For Part Revolution Mechanical Power Presses
The Link 5100-AMC Automation Control integrates with any existing press control. It uses the 806 Operator Terminal to integrate the 5100 modules for die protection and process monitoring, programmable limit switches, tonnage and signature monitoring, automatic setup, and provides multiple communication interfaces. Control, sequence, monitor, and diagnose automation used with press production systems.
The 5100-AMC Press Control Delivers:
Long-Term ROI
Rugged modular design and Link technical support make for a long product life and ability to add future system functions. Up to 1000 jobs can be stored to allow quick production system changeover. Monitoring and diagnostics protect press and dies, improve part quality, identify process problems, and reduce downtime.
Increased Productivity
This automation control works with your current press control to provide quick setup and coherent integrated monitoring, sequencing, and diagnostic functions to increase productivity and quality control in your stamping processes.
Stress-Free Operation

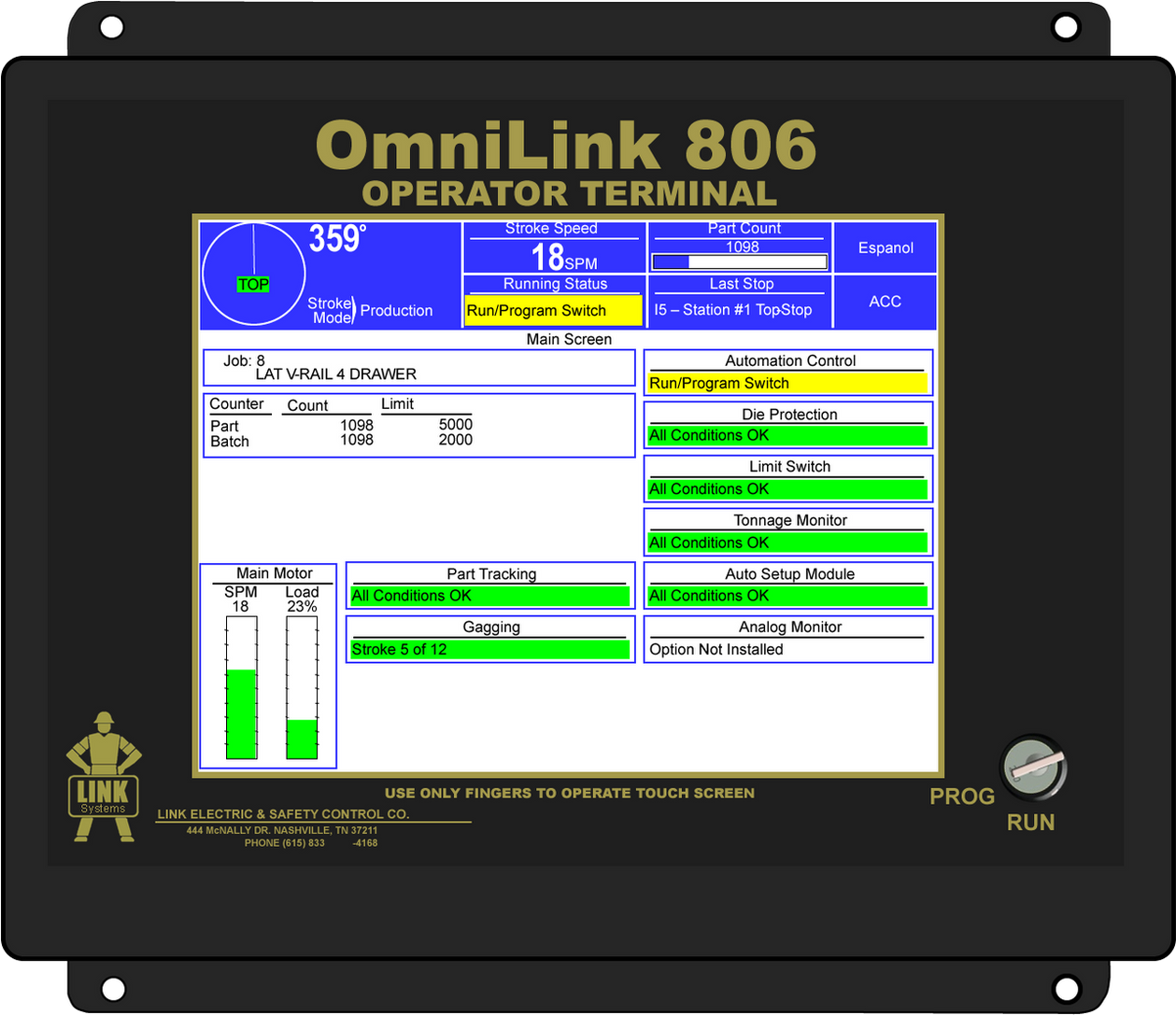

Easy to use touch-screen terminal with on-screen help displays all system information in English or Spanish and provides quick entry or recall of settings and selections for press and automation control functions.
Scalability
The 5100-AMC’s modular design using distributed processing allows additional modules to be easily added to ensure your press production system grows with your press production needs.
Features
-
806 operator touch screen – English/Spanish quick select
-
Resolver based crankshaft and position with graphic and numeric display
-
Sets and displays stroking speed for variable speed presses
-
Intelligent diagnostics
-
Storage and quick recall of up to 1000 jobs
-
Six – 2000 strokes/min working range
-
Dual limit stopping time performance (brake) monitor
-
Clutch engagement time monitor
-
Automatic top stop compensation for variable speed presses
-
Twelve configurable part counter groups driven by stroke or sensors that count actual parts into a bin
-
Access control to prevent unauthorized changes
Optional
-
5100-5 Programmable Limit Switch modules provide up to 96 pls channels with tracking inputs and gagging die function capability
-
512x die protection modules provide up to 80 digital die protection inputs that fully integrate with gagging and part tracking
-
5100-8 Tonnage and analog signal module provides two or four channels of tonnage and signature monitoring and four general use analog channels
-
5100-14 auto setup module automatically sets press shut height and counterbalance and cushion pressures on recall for die changes
-
Serial feed interface, modbus interface, and other communication options to integrate press and automation
-
LinkNet 3 – shop floor data collection connection ready
-
Up to four safety relay outputs for interface with automation
-
Part tracking and highly-configurable gagging with sequence lengths up to 256 strokes
-
Custom packaging options for modules and operator terminal
