5100-5 Programmable Limit Switch
Programmable Limit Switch Modules with Flexible Functions for Advanced Applications
The 5100-5 Programmable Limit Switch is an optional module that works in conjunction with the 5100-APC, the 5100-AMC, and the 5100-AMC-Servo. With up to 96 advanced programmable limit switch outputs, we can handle even the most complex applications.
The 5100-APC Press Control Delivers:
Long-Term ROI
Error-proof and shorten your setup by using job recall for up to 1000 jobs.
Operational Flexibility
Integrated inputs can be used to verify occurrences of output commands and support other complex applications.
Scalability
Can provide eight to 96 advanced outputs and inputs for all your automation needs.
Increased Productivity
Integrated part tracking, gagging, and special modes allow no-stop bin switching and bad-part rejection to optimize your process.
Features
-

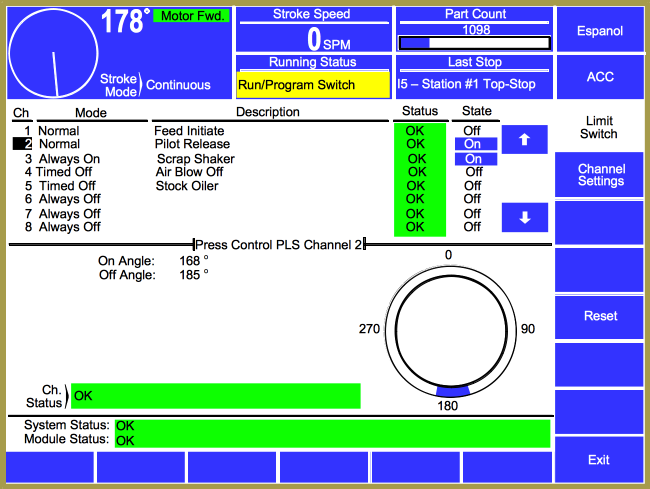

Up to 96 PLS channels added in banks of eight
-
Solid state or electromechanical outputs available
-
Channels can be restricted for machine-related settings that don’t change with the job
-
Flexible outputs allow sequencing of automation with press stroking, such as transfer systems, feeds, parts ejection, and other applications
-
Complete diagnostics for reduced downtime
-
Inputs can be used for checking the results of outputs
-
Operates at speeds up to 2000 strokes per minute
-
When used with the 5100-AMC-Servo, fully supports complex press cycles, including the ability to fire only on particular steps
-
Speed-advanced outputs support applications with mechanical reaction times, such as feed roll release
-
Supports gagging and part tracking, including when used with complex servo press cycles
