805-5 Tonnage Monitor
Cost-Effective, Consistent Setups and Press Protection
The 805-5 Tonnage Monitor board is an affordable option for the 5100-MPC Press control that measures and displays the forces being applied to the frame of a press during the working portion of the stroke. These forces are compared with allowable limits based on the capacity of the machine and correct operation of the die and material being used.
The 805-5 Tonnage Monitor Delivers:
Long-Term ROI
Extends the life of your press, reduces downtime, and improves part quality by running your press within capacity.
Consistency
Ensures correct press shut-height adjustment during job setup.
Ease of Use
Provides easy and precise job setup with touch-screen interface, flexible bypass modes, and auto setup.
Process Visibility

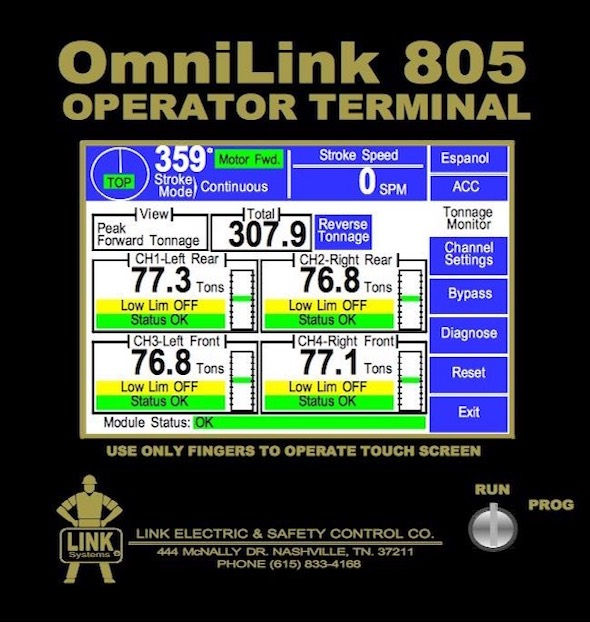

Offers numeric and graphical indication of tonnage relative to limits.
Features
-
Offers four channels for use on a variety of press frames
-
Displays peak forward and reverse tonnage for each channel, plus the total
-
Enables user to enter total capacity derating curve for distance off bottom
-
Provides high, low, and reverse peak limits to be set for each channel
-
Low limits can be automatically bypassed when in setup mode
